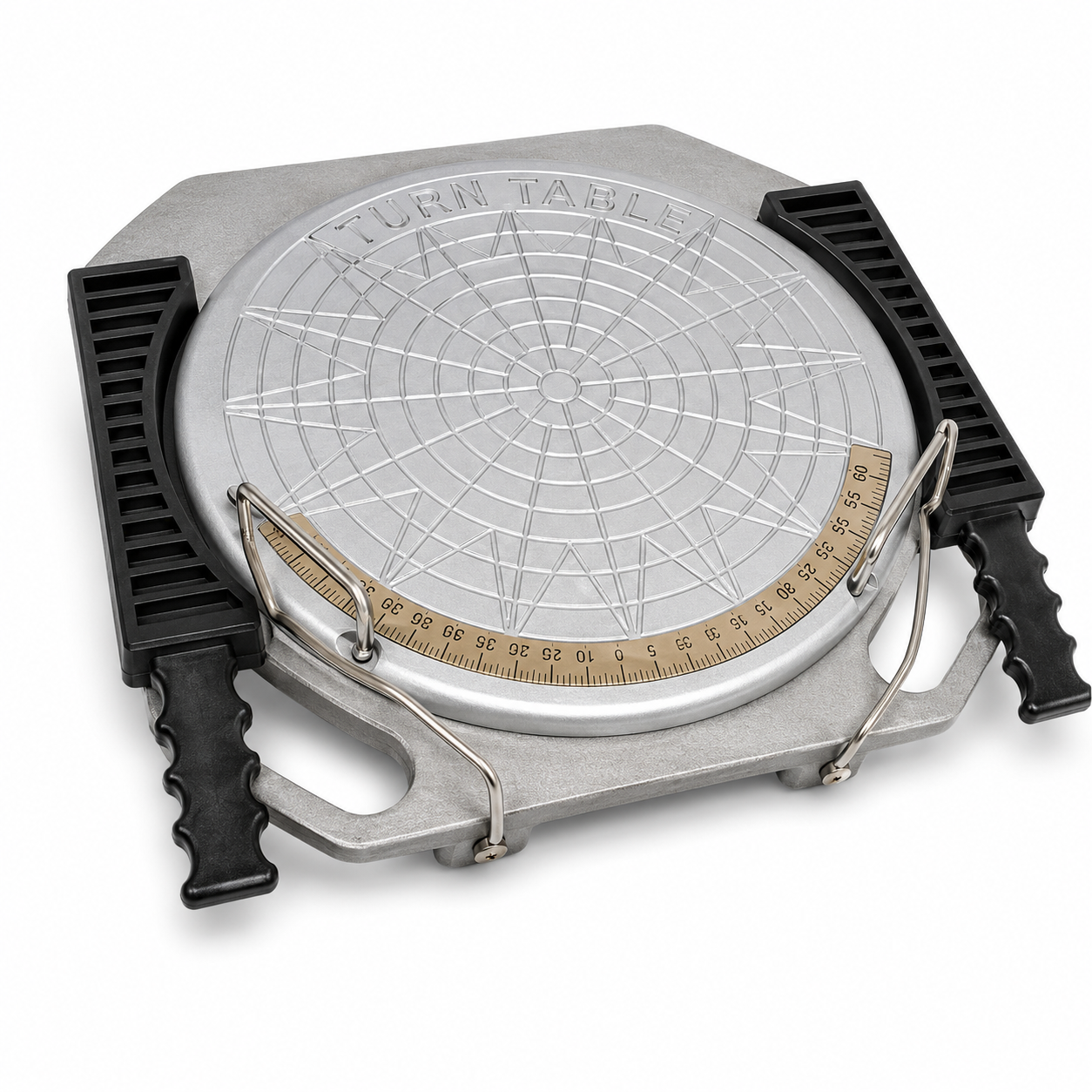

Lightweight Aluminium Wheel Alignment Turn Plate with Rubber Stopper – Passenger Car – Pair of 2 Pcs

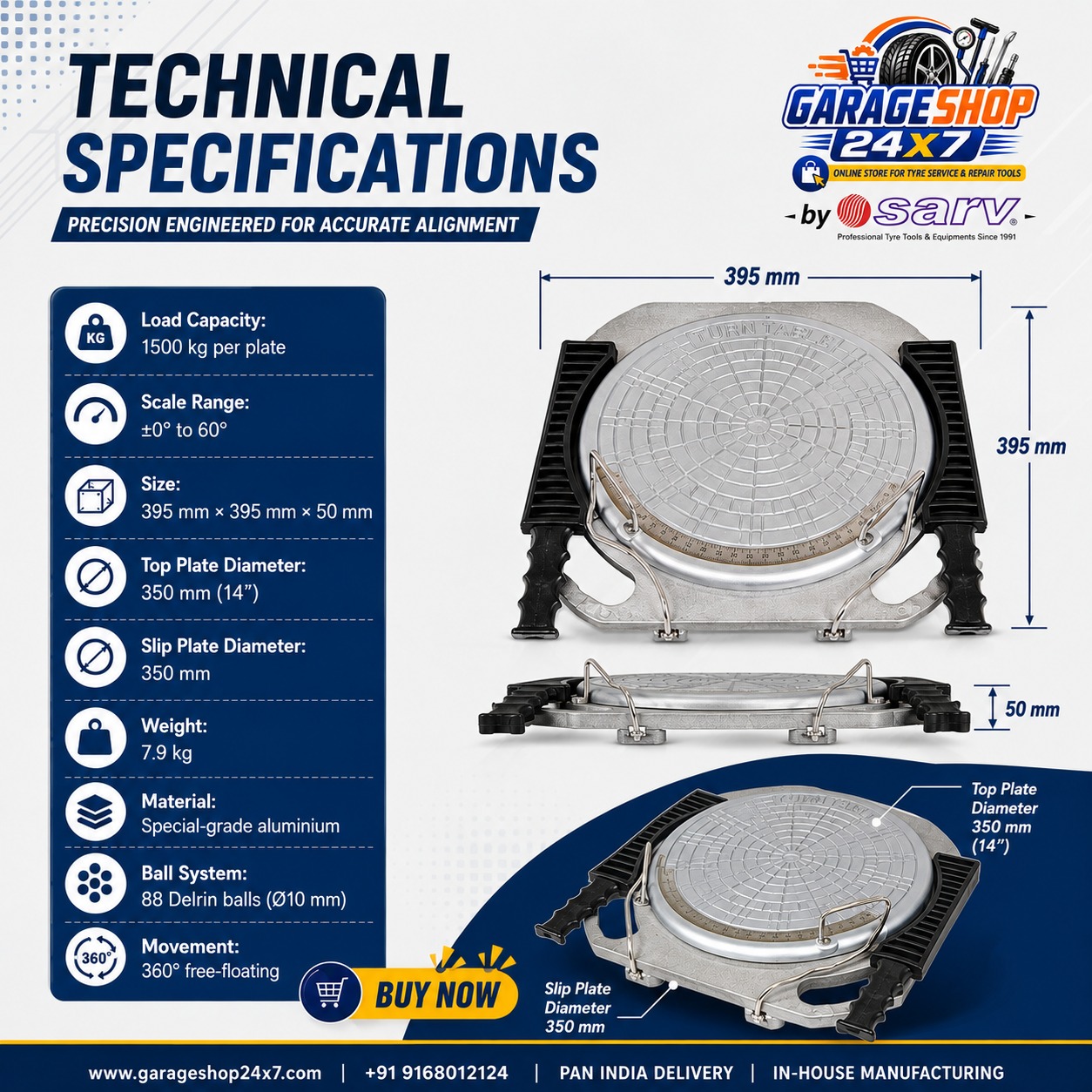

Load Capacity 1500 kg per plate
Scale Range ±0° to 60°
Overall Size 395 × 395 × 50 mm
Top Plate Diameter 350 mm (14″)
Slip Plate Diameter 350 mm
Weight 7.9 kg
Material Special-grade aluminium
Ball System 88 Delrin balls (Ø10 mm)
Movement 360° free-floating
Locking System Dual pin lock
Additional Features Built-in handle, auto-centering
Included Accessories Rubber stoppers

– Passenger car wheel alignment workshops
– Automotive garages and service centers
– Tyre and wheel alignment service centers
– Passenger car service stations
– Light commercial vehicle maintenance facilities
– Replacement turn plate applications for compatible wheel alignment machines

– 360° free-floating movement for unrestricted wheel movement during alignment measurements.
– 88 Delrin balls (Ø10 mm) create a low-friction movement system for smooth plate rotation.
– Dual-pin locking mechanism holds the plate in its zero position during drive-on and when not in use.
– ±0° to 60° graduated scale enables direct observation of wheel turning angles.
– Rubber stoppers included to assist with centring and controlled vehicle positioning.

1. Where can I buy Aluminium Wheel Alignment Turn Plate equipment for passenger cars?
You can buy this SARV Aluminium Wheel Alignment Turn Plate through Garage Shop 24×7. The product is designed for passenger cars, LCVs and most 4-wheeler wheel alignment applications.
2. What is the load capacity of this Aluminium Wheel Alignment Turn Plate?
Each turn plate has a stated load capacity of 1500 kg per plate, making it suitable for the vehicle categories specified on the product page.
3. What makes this aluminium turn plate lightweight?
The plate is manufactured from special-grade aluminium and has a listed weight of 7.9 kg, helping technicians carry and position it more conveniently during workshop operations.
4. Does this wheel alignment turn plate provide 360-degree movement?
Yes. The plate features 360° free-floating movement supported by 88 Delrin balls, each measuring 10 mm in diameter.
5. What is the measurement range of the turn plate scale?
The Aluminium Wheel Alignment Turn Plate provides a ±0° to 60° scale range for observing wheel turning angles during alignment procedures.
6. Are rubber stoppers supplied with the wheel alignment turn plates?
Yes. Rubber stoppers are included. The product page states that they assist with centring and safe, accurate positioning of the turn plate.
7. Can this turn plate be used as a replacement for an existing wheel alignment machine?
The product page states that it can be used with SARV wheel alignment machines, as a replacement spare part, and can also be universally used. Buyers should confirm dimensions and compatibility with their particular alignment setup before ordering.
8. What are the dimensions of the SARV Aluminium Wheel Alignment Turn Plate?
The overall dimensions are 395 × 395 × 50 mm. The top plate diameter is 350 mm (14 inches), and the listed slip plate diameter is also 350 mm.
